Omschrijving
3845 Bund. w/AIM-VPN/SSL-3,Adv. IP Serv,25 SSL lic,128F/512D.
| Dimensions & Weight | |
|---|---|
| Depth: | 40.6 cm |
| Height: | 13.3 cm |
| Width: | 43.8 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 5 - 95% |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Expansion / Connectivity | |
|---|---|
| Expansion Slots: | 4 (total) / 4 (free) x HWIC ¦ 2 (total) / 1 (free) x AIM ¦ 4 (total) / 4 (free) x NME-X ¦ 4 (total) / 4 (free) x PVDM ¦ Memory ¦ 1 CompactFlash |
| Interfaces: | 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 2 x ¦ Management: 1 x console ¦ 1 x auxiliary ¦ 1 x SFP (mini-GBIC) |
| General | |
|---|---|
| Authentication Method: | Secure Shell v.2 (SSH2) |
| Capacity: | Concurrent SSL connections: 25 |
| Compliant Standards: | VCCI, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, AS/NZ 3548 Class A, ICES-003 Class A, CS-03, EN 61000-6-2 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Device Type: | Router |
| Enclosure Type: | Desktop - modular - 3U |
| Encryption Algorithm: | DES, Triple DES, SSL, 128-bit AES, 192-bit AES, 256-bit AES |
| Features: | Firewall protection, hardware compression, hardware encryption, VPN support, MPLS support, content filtering, URL filtering, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Flash Memory: | 128 MB (installed) / 512 MB (max) |
| Network / Transport Protocol: | IPSec |
| RAM: | 512 MB (installed) / 1 GB (max) - DDR SDRAM |
| Remote Management Protocol: | SNMP 3, SSH-2 |
| Status Indicators: | Power, link/activity |
| Power | |
|---|---|
| Installed Qty: | 1 (installed) / 2 (max) |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
|---|---|
| OS Provided: | Cisco IOS Advanced IP services |

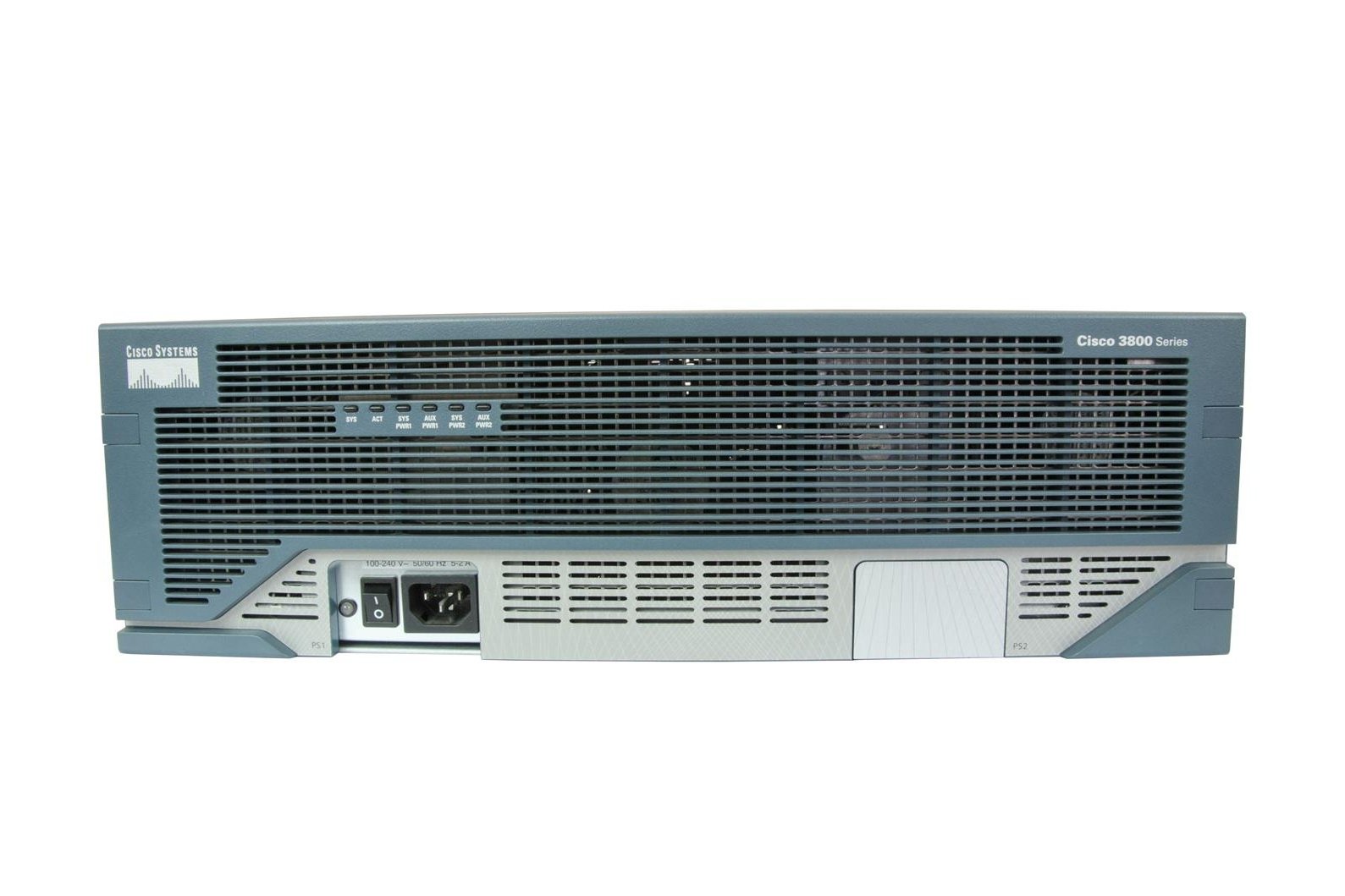

Productstaat van de Cisco 3800 series - Cisco3845-HSEC/K9
Het apparaat ziet er goed uit. Er kunnen een paar kleine krasjes te zien zijn op de behuizing.
We checken de hardware bij uitlevering zodat u verzekerd bent van een goed werkend apparaat. Alle producten die wij uitleveren hebben 1 jaar garantie.
