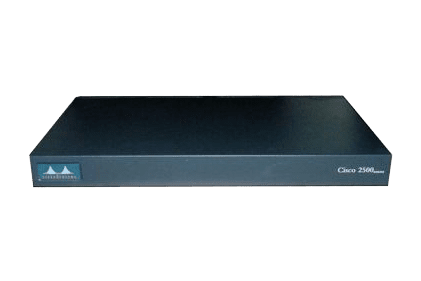

Cisco 2501 Ethernet/Dual Serial Router.
| Dimensions & Weight |
| Depth: |
26.8 cm |
| Height: |
4.4 cm |
| Weight: |
4.5 kg |
| Width: |
44.5 cm |
| Environmental Parameters |
| Humidity Range Operating: |
5 - 95% |
| Max Operating Temperature: |
40 °C |
| Min Operating Temperature: |
0 °C |
| Expansion / Connectivity |
| Expansion Slots: |
1 (total) / 1 (free) x memory |
| Interfaces: |
Management: 1 x console - RJ-45 - 1 ¦ Serial: 1 x auxiliary - RJ-45 - 1 ¦ 1 x 10Base-5 - 15 pin D-Sub (DB-15) - 1 ¦ Serial: 2 x synchronous - 60 pin D-Sub (DB-60) - 2 |
| General |
| Compliant Standards: |
IEEE 802.3 |
| Connectivity Technology: |
Wired |
| Data Link Protocol: |
Ethernet, serial |
| Data Transfer Rate: |
10 Mbps |
| Device Type: |
Router |
| Enclosure Type: |
Desktop - modular |
| Flash Memory: |
4 MB |
| Network / Transport Protocol: |
TCP/IP, IPX/SPX, PPTP, X.25 |
| Processor: |
1 x Motorola 68030 20 MHz |
| RAM: |
2 MB (installed) / 16 MB (max) |
| Remote Management Protocol: |
SNMP |
| Status Indicators: |
Port status, power |
| Miscellaneous |
| Cables Included: |
1 x serial adapter |
| Power |
| Power Consumption Operational: |
40 Watt |
| Power Device: |
Internal power supply |
| Voltage Required: |
AC 120/230 V (50/60 Hz) |
| Software / System Requirements |
| OS Provided: |
Cisco IOS |
| Software Included: |
Drivers & Utilities |
Productstaat van de Cisco series 2500 Cisco 2501 Ethernet/Dual Serial Router (CISCO2501)
Het apparaat ziet er goed uit. Er kunnen een paar kleine krasjes te zien zijn op de behuizing.
We checken de hardware bij uitlevering zodat u verzekerd bent van een goed werkend apparaat. Alle producten die wij uitleveren hebben 1 jaar garantie.
