Omschrijving

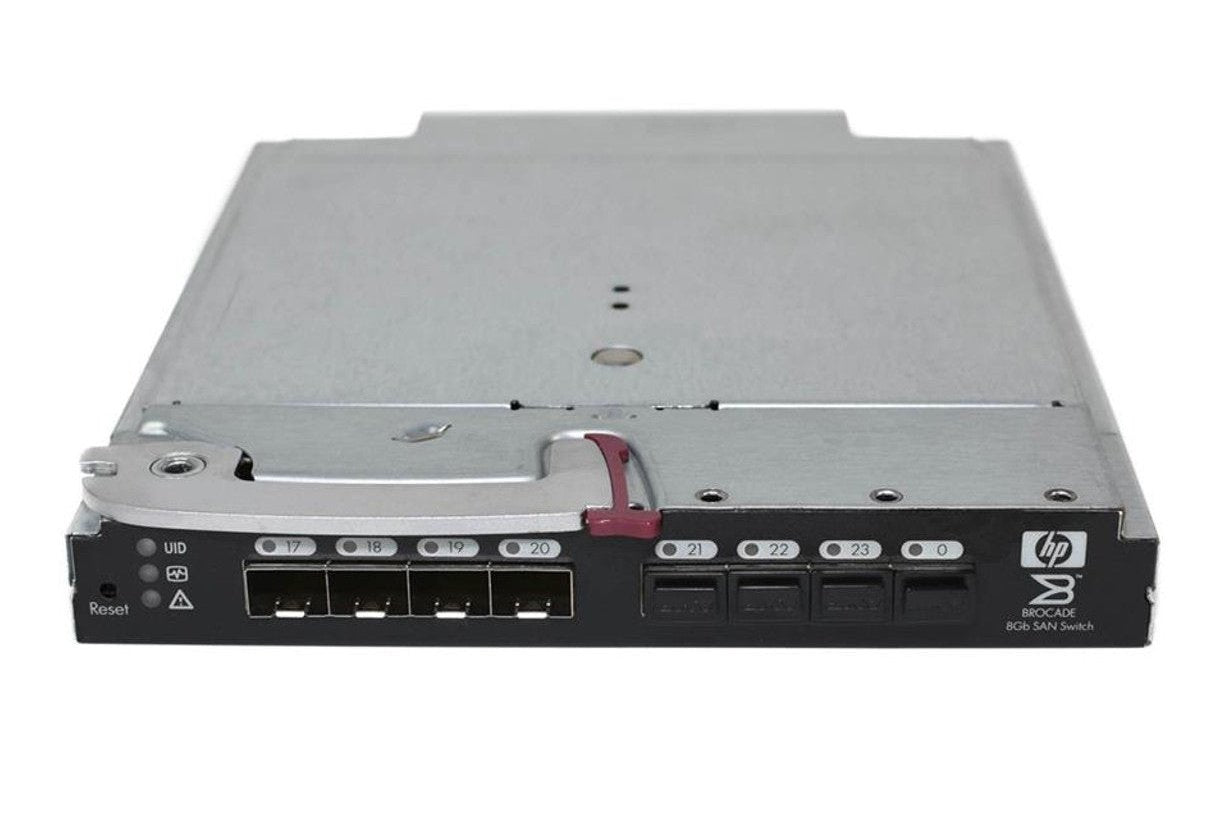

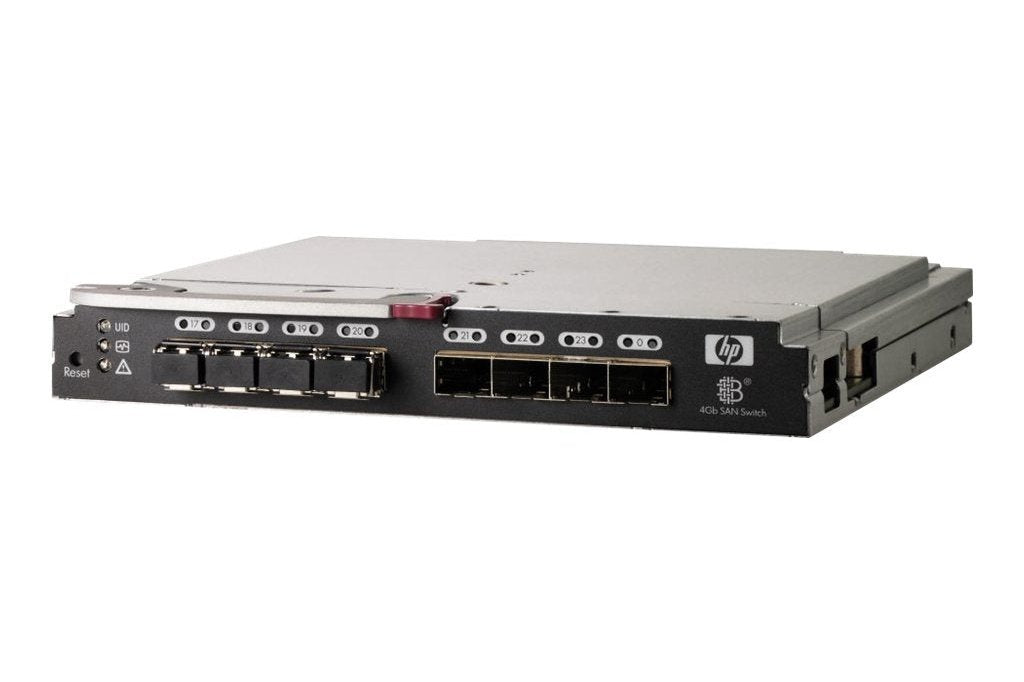

HP AJ820A HP BROCADE 8/12C SAN SWITCH BLADESYSTEM C-CLASS
| Compatibility Information | |
|---|---|
| Designed For: | HPE BladeSystem c3000 Starter ¦ HPE BLc3000 Enclosure ¦ HPE BLc3000 Single-Phase Enclosure ¦ HPE BLc7000 Enclosure ¦ HPE BLc7000 Enclosure Model X ¦ HPE BLc7000 Single-Phase Enclosure ¦ HPE BLc7000 Three-Phase Enclosure |
| Dimensions & Weight | |
|---|---|
| Depth: | 19.4 cm |
| Height: | 2.9 cm |
| Weight: | 1.32 kg |
| Width: | 27.9 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 10 - 90% |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 10 °C |
| Expansion / Connectivity | |
|---|---|
| Installed Modules Qty (Max): | 2 (installed) / 8 (max) |
| Interfaces: | 2 x 8Gb Fibre Channel (SW) x 2 ¦ 12 x 8Gb Fibre Channel - backplane ¦ 6 x SFP+ |
| General | |
|---|---|
| Compatible Slots: | 1 x Expansion Slot |
| Device Type: | Switch - 12 ports |
| Enclosure Type: | Plug-in module |
| Features: | ARP support, manageable |
| Fibre Channel: | FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-4, FC-PI, FC-PLDA, FC-SB-3, FC-SW-3, FC-Tape, FC-VI, FC-BB-2, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FC-LS, FC-MI-2, FC-PI-4 |
| Ports: | 12 x 8Gb Fibre Channel |
| Remote Management Protocol: | SNMP, Telnet, HTTP, SMI-S |
| Subtype: | Fibre Channel |
| Miscellaneous | |
|---|---|
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, VCCI Class A ITE, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, AS/NZ 3548 Class A, EMC, FCC CFR47 Part 15 B |
| Included Accessories: | 2 x 8 Gbps Short Wave Fibre Channel SFP+ |
| Software / System Requirements | |
|---|---|
| Software Included: | Brocade Advanced Zoning, Brocade Fabric OS |
Productstaat van de HP AJ820A HP BROCADE 8/12C SAN SWITCH BLADESYSTEM C-CLASS
Het apparaat ziet er goed uit.
We checken de hardware bij uitlevering zodat u verzekerd bent van een goed werkend apparaat. Alle producten die wij uitleveren hebben 1 jaar garantie.
